UP3000-G5 SERIES

10kVA - 200kVA 3-phase (3-3) UPS online double conversion

The re-engineered & more powerful 5th Generation UP3000 Series

The UP3000-G5 series is an advanced three phase, true online, dual conversion, digitally controlled UPS and utilises a transformerless with IGBT rectifier advanced technology and is designed to withstand all types of loads found typically in Telecom, Data Centre, Banking and Laboratory applications.

Areas of Usage

REQUEST A QUOTE

General Description
Technical Specifications
Documents

10kVA – 200kVA 3-3 online double conversion UPS

The UP3000-G5 Series is a 3-phase UPS that is designed to withstand heavy loads found typically in the Telecom, Data Centre, Banking, and Laboratory environments.

Benefits:

• High frequency on-line double conversion technology
• Advanced dual-core DSP control technology and 3-level technology
• Active power factor correction (APFC), input power factor up to 0.99
• System efficiency is improved to 96%, energy saving rate is doubled
• Output power factor 1.0
• Dual input design, supporting independent bypass
• Advanced digital and parallel technology, providing higher reliability than single system
• Wide input voltage range
• 50 I 60 Hz auto-sensing frequency
• 50 I 60 Hz frequency conversion mode
• Work efficiency up to 98% in ECO mode
• Fan speed varies intelligently with load, reducing noise and extending its service life
• Conformal coating technology to make UPS operate in harsh environment for a long time
• Flexible battery configuration setting, selectable battery numbers: 32- 40 pcs
• Digitally controlled charger ~
• Ability to switch on the UPS by battery in the absence of mains power (Cold start)
• Linear derating in low voltage input, reducing battery discharging times, extending the service life of battery
• Intelligent battery management, automatic equalized and float charging control, charger dormancy control, improving the reliability of charger and extending the battery life
• Effective hardware and software protection, robust self-diagnosis function, abundant event logs for future check
• Standard RS232, USB, RS485, EPO, Dry contacts, Parallel port
• Optional SNMP card, WI-Fl card, GPRS card, SMS alarms

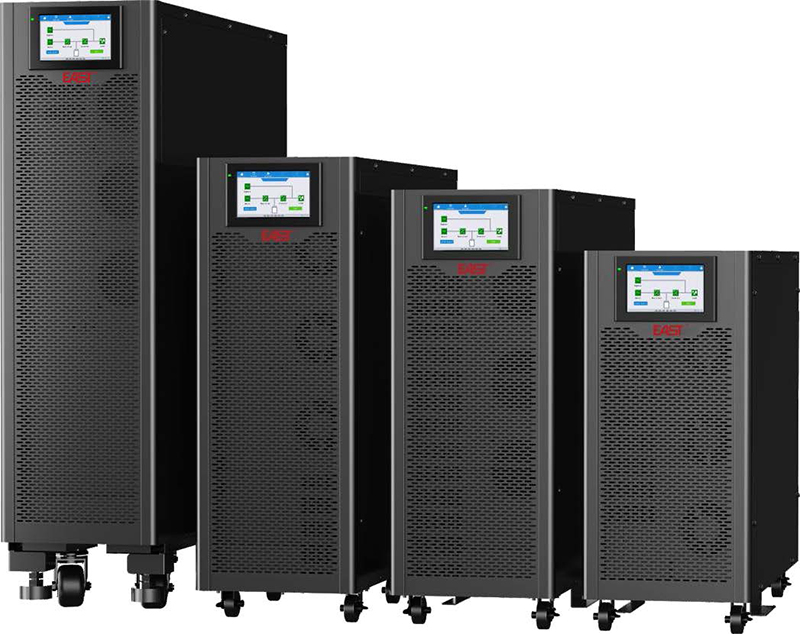

UP3000-G5 SERIES (10-60 kW)
UP3000-G5 SERIES (80-200 kW)

TECHNICAL SPECIFICATIONS UP3000-G5 (10kW)
MODEL	UP3010-G5
Capacity / Power (kVA)	10kW
INPUT
Phase	3:3/3:1 / 1:1
Related Voltage	220/230/240Vac {L-N} 380/400/415Vac
Voltage Range	132-275Vac(L-N) 228-478Vac
Rated Frequency	50 / 60 Hz
Frequency Range	40 ~ 70Hz
Power Factor	> 0.99
By-Pass Voltage Range	-Selectable, default -20%-+15% Up limited: +10%, +15%, +20%, +25%; Down limited: -10%, -15%, -20%, -30%, -40%
By-Pass Frequency Range	Selectable, ±1 Hz, ±3Hz, ±5Hz
Input Current TH Di	<3% (linear load)
By-pass Overload	125%: long term operation; 125%-130%: 1 Omin; 130%-150%: 1 min; 150%-400%: 1 s; >400%, less than 200ms
OUTPUT
Rated Voltage	220/230/240Vac (L-N) 380/400/415Vac (3Φ + N + PE)
Voltage Precision	±1 % ( linear load)
Frequency	Synchronized with utility in mains mode, 50/60 Hz± 0.1 Hz in battery mode
Waveform	Sinusoidal
Power Factor	1
Total Harmonic Distortion (THDv)	<1 % (full linear load}; <3% (full non-linear load according to IEC/EN62040-3)
Crest Factor	3:1
Overload	<110%, 60min; 110%-125%, 1 Omin; 125%-150%, 1min; >150%, 200ms
BATTERIES
DC Voltage	Long time model: ±240VDC ( selectable, 32 – 40pcs)
Standard Model Battery Voltage	(10+10) x 9AH
Charging current	10AMax.
Charger voltage precision	1%
SYSTEM
Display	5 inch touch screen
Efficiency	95% Max.
Transfer time	0 ms
Max. number of parallel connections	4
Interface	Standard: RS232, RS485, USB, battery cold start Option: programmable dry contact, SNMP, parallel kit
ENVIRONMENT
Operating Temperature	0°~ 40°C
Storage Temperature	-40° ~ 70° C
Relative Humidity	0 ~ 95% (non-condensing)
Altitude	< 1000 m, load derated 1% per 100m from 1000 ~ 2000m
Noise Level at 1 m	58dB Max.
OTHERS
Dimensions (WxDxH) mm	250 x 720 x 560 (S) 250 x 720 x 560 (H)
Packaged Dimensions (W x D x H) mm	350 X 800 X 722 (S) 350x800x718(H)
Net Weight (kg)	82 (S) 31 (H)
Gross Weight (kg)	93 (S) 40 (H)
• S = standard model: H = long time model. • Derate capacity to 90% when the number of batteries is set to 32 pcs for 40kVA/60kVA model. • Custom-made specifications are acceptable. • All specifications are subject to change without notice. • Derate capacity to 60% when used at 3: 1.

TECHNICAL SPECIFICATIONS UP3000-G5 (20kW)
MODEL	UP3020-G5
Capacity / Power (kVA)	20kW
INPUT
Phase	3:3/3:1 / 1:1
Related Voltage	220/230/240Vac {L-N} 380/400/415Vac
Voltage Range	132-275Vac(L-N) 228-478Vac
Rated Frequency	50 / 60 Hz
Frequency Range	40 ~ 70Hz
Power Factor	> 0.99
By-Pass Voltage Range	-Selectable, default -20%-+15% Up limited: +10%, +15%, +20%, +25%; Down limited: -10%, -15%, -20%, -30%, -40%
By-Pass Frequency Range	Selectable, ±1 Hz, ±3Hz, ±5Hz
Input Current TH Di	<3% (linear load)
By-pass Overload	125%: long term operation; 125%-130%: 1 Omin; 130%-150%: 1 min; 150%-400%: 1 s; >400%, less than 200ms
OUTPUT
Rated Voltage	220/230/240Vac (L-N) 380/400/415Vac (3Φ + N + PE)
Voltage Precision	±1 % ( linear load)
Frequency	Synchronized with utility in mains mode, 50/60 Hz± 0.1 Hz in battery mode
Waveform	Sinusoidal
Power Factor	1
Total Harmonic Distortion (THDv)	<1 % (full linear load}; <3% (full non-linear load according to IEC/EN62040-3)
Crest Factor	3:1
Overload	<110%, 60min; 110%-125%, 1 Omin; 125%-150%, 1min; >150%, 200ms
BATTERIES
DC Voltage	Long time model: ±240VDC ( selectable, 32 – 40pcs)
Standard Model Battery Voltage	(20+20) x 7AH
Charging current	10AMax.
Charger voltage precision	1%
SYSTEM
Display	5 inch touch screen
Efficiency	95% Max.
Transfer time	0 ms
Max. number of parallel connections	4
Interface	Standard: RS232, RS485, USB, battery cold start Option: programmable dry contact, SNMP, parallel kit
ENVIRONMENT
Operating Temperature	0°~ 40°C
Storage Temperature	-40° ~ 70° C
Relative Humidity	0 ~ 95% (non-condensing)
Altitude	< 1000 m, load derated 1% per 100m from 1000 ~ 2000m
Noise Level at 1 m	58dB Max.
OTHERS
Dimensions (WxDxH) mm	250 x 800 x 700 (S) 250 x 720 x 560 (H)
Packaged Dimensions (W x D x H) mm	350 X 900 X 862 (S) 350 X 800 X 718 (H)
Net Weight (kg)	131 (S) 33 (H)
Gross Weight (kg)	142 (S) 42 (H)
• S = standard model: H = long time model. • Derate capacity to 90% when the number of batteries is set to 32 pcs for 40kVA/60kVA model. • Custom-made specifications are acceptable. • All specifications are subject to change without notice. • Derate capacity to 60% when used at 3: 1.

TECHNICAL SPECIFICATIONS UP3000-G5 (30kW)
MODEL	UP3030-G5
Capacity / Power (kVA)	30kW
INPUT
Phase	3:3/3:1 / 1:1
Related Voltage	220/230/240Vac {L-N} 380/400/415Vac
Voltage Range	132-275Vac(L-N) 228-478Vac
Rated Frequency	50 / 60 Hz
Frequency Range	40 ~ 70Hz
Power Factor	> 0.99
By-Pass Voltage Range	-Selectable, default -20%-+15% Up limited: +10%, +15%, +20%, +25%; Down limited: -10%, -15%, -20%, -30%, -40%
By-Pass Frequency Range	Selectable, ±1 Hz, ±3Hz, ±5Hz
Input Current TH Di	<3% (linear load)
By-pass Overload	125%: long term operation; 125%-130%: 1 Omin; 130%-150%: 1 min; 150%-400%: 1 s; >400%, less than 200ms
OUTPUT
Rated Voltage	220/230/240Vac (L-N) 380/400/415Vac (3Φ + N + PE)
Voltage Precision	±1 % ( linear load)
Frequency	Synchronized with utility in mains mode, 50/60 Hz± 0.1 Hz in battery mode
Waveform	Sinusoidal
Power Factor	1
Total Harmonic Distortion (THDv)	<1 % (full linear load}; <3% (full non-linear load according to IEC/EN62040-3)
Crest Factor	3:1
Overload	<110%, 60min; 110%-125%, 1 Omin; 125%-150%, 1min; >150%, 200ms
BATTERIES
DC Voltage	Long time model: ±240VDC ( selectable, 32 – 40pcs)
Standard Model Battery Voltage	(20+20) x 9AH
Charging current	10AMax.
Charger voltage precision	1%
SYSTEM
Display	5 inch touch screen
Efficiency	95% Max.
Transfer time	0 ms
Max. number of parallel connections	4
Interface	Standard: RS232, RS485, USB, battery cold start Option: programmable dry contact, SNMP, parallel kit
ENVIRONMENT
Operating Temperature	0°~ 40°C
Storage Temperature	-40° ~ 70° C
Relative Humidity	0 ~ 95% (non-condensing)
Altitude	< 1000 m, load derated 1% per 100m from 1000 ~ 2000m
Noise Level at 1 m	58dB Max.
OTHERS
Dimensions (WxDxH) mm	250 x 800 x 700 (S) 250 x 720 x 560 (H)
Packaged Dimensions (W x D x H) mm	350 X 900 X 862 (S) 350 X 800 X 718 (H)
Net Weight (kg)	131 (S) 33 (H)
Gross Weight (kg)	142 (S) 42 (H)
• S = standard model: H = long time model. • Derate capacity to 90% when the number of batteries is set to 32 pcs for 40kVA/60kVA model. • Custom-made specifications are acceptable. • All specifications are subject to change without notice. • Derate capacity to 60% when used at 3: 1.

TECHNICAL SPECIFICATIONS UP3000-G5 (40kW)
MODEL	UP3040-G5
Capacity / Power (kVA)	40kW
INPUT
Phase	3:3/3:1 / 1:1
Related Voltage	220/230/240Vac {L-N} 380/400/415Vac
Voltage Range	132-275Vac(L-N) 228-478Vac
Rated Frequency	50 / 60 Hz
Frequency Range	40 ~ 70Hz
Power Factor	> 0.99
By-Pass Voltage Range	-Selectable, default -20%-+15% Up limited: +10%, +15%, +20%, +25%; Down limited: -10%, -15%, -20%, -30%, -40%
By-Pass Frequency Range	Selectable, ±1 Hz, ±3Hz, ±5Hz
Input Current TH Di	<3% (linear load)
By-pass Overload	125%: long term operation; 125%-130%: 1 Omin; 130%-150%: 1 min; 150%-400%: 1 s; >400%, less than 200ms
OUTPUT
Rated Voltage	220/230/240Vac (L-N) 380/400/415Vac (3Φ + N + PE)
Voltage Precision	±1 % ( linear load)
Frequency	Synchronized with utility in mains mode, 50/60 Hz± 0.1 Hz in battery mode
Waveform	Sinusoidal
Power Factor	1
Total Harmonic Distortion (THDv)	<1 % (full linear load}; <3% (full non-linear load according to IEC/EN62040-3)
Crest Factor	3:1
Overload	<110%, 60min; 110%-125%, 1 Omin; 125%-150%, 1min; >150%, 200ms
BATTERIES
DC Voltage	Long time model: ±240VDC ( selectable, 32 – 40pcs)
Standard Model Battery Voltage	(15+15) x 9AH x2 strings
Charging current	10AMax.
Charger voltage precision	1%
SYSTEM
Display	5 inch touch screen
Efficiency	95% Max.
Transfer time	0 ms
Max. number of parallel connections	4
Interface	Standard: RS232, RS485, USB, battery cold start Option: programmable dry contact, SNMP, parallel kit
ENVIRONMENT
Operating Temperature	0°~ 40°C
Storage Temperature	-40° ~ 70° C
Relative Humidity	0 ~ 95% (non-condensing)
Altitude	< 1000 m, load derated 1% per 100m from 1000 ~ 2000m
Noise Level at 1 m	62dB Max.
OTHERS
Dimensions (WxDxH) mm	250 x 840 x 930 (S) 250 x 840 x 650 (H))
Packaged Dimensions (W x D x H) mm	350 X 950 X 1102 (S) 350 X 980 X 810 (H)
Net Weight (kg)	215 (S) 42 (H)
Gross Weight (kg)	227 (S) 52 (H)
• S = standard model: H = long time model. • Derate capacity to 90% when the number of batteries is set to 32 pcs for 40kVA/60kVA model. • Custom-made specifications are acceptable. • All specifications are subject to change without notice. • Derate capacity to 60% when used at 3: 1.

TECHNICAL SPECIFICATIONS UP3000-G5 (50kW)
MODEL	UP3050-G5
Capacity / Power (kVA)	50kW
INPUT
Phase	3:3/3:1 / 1:1
Related Voltage	220/230/240Vac {L-N} 380/400/415Vac
Voltage Range	132-275Vac(L-N) 228-478Vac
Rated Frequency	50 / 60 Hz
Frequency Range	40 ~ 70Hz
Power Factor	> 0.99
By-Pass Voltage Range	-Selectable, default -20%-+15% Up limited: +10%, +15%, +20%, +25%; Down limited: -10%, -15%, -20%, -30%, -40%
By-Pass Frequency Range	Selectable, ±1 Hz, ±3Hz, ±5Hz
Input Current TH Di	<3% (linear load)
By-pass Overload	125%: long term operation; 125%-130%: 1 Omin; 130%-150%: 1 min; 150%-400%: 1 s; >400%, less than 200ms
OUTPUT
Rated Voltage	220/230/240Vac (L-N) 380/400/415Vac (3Φ + N + PE)
Voltage Precision	±1 % ( linear load)
Frequency	Synchronized with utility in mains mode, 50/60 Hz± 0.1 Hz in battery mode
Waveform	Sinusoidal
Power Factor	1
Total Harmonic Distortion (THDv)	<1 % (full linear load}; <3% (full non-linear load according to IEC/EN62040-3)
Crest Factor	3:1
Overload	<110%, 60min; 110%-125%, 1 Omin; 125%-150%, 1min; >150%, 200ms
BATTERIES
DC Voltage	Long time model: ±240VDC ( selectable, 32 – 40pcs)
Standard Model Battery Voltage	(20+20) x 9AH x2 strings
Charging current	15AMax.
Charger voltage precision	1%
SYSTEM
Display	5 inch touch screen
Efficiency	96% Max.
Transfer time	0 ms
Max. number of parallel connections	4
Interface	Standard: RS232, RS485, USB, battery cold start Option: programmable dry contact, SNMP, parallel kit
ENVIRONMENT
Operating Temperature	0°~ 40°C
Storage Temperature	-40° ~ 70° C
Relative Humidity	0 ~ 95% (non-condensing)
Altitude	< 1000 m, load derated 1% per 100m from 1000 ~ 2000m
Noise Level at 1 m	62dB Max.
OTHERS
Dimensions (WxDxH) mm	350 x 800 x 1280 (S) 250 x 720 x 560 (H)
Packaged Dimensions (W x D x H) mm	450 X 900 X 1400 (S) 350 X 800 X 718 (H)
Net Weight (kg)	300 (S) 42 (H)
Gross Weight (kg)	310 (S) 52 (H)
• S = standard model: H = long time model. • Derate capacity to 90% when the number of batteries is set to 32 pcs for 40kVA/60kVA model. • Custom-made specifications are acceptable. • All specifications are subject to change without notice. • Derate capacity to 60% when used at 3: 1.

TECHNICAL SPECIFICATIONS UP3000-G5 (60kW)
MODEL	UP3060-G5
Capacity / Power (kVA)	60kW
INPUT
Phase	3:3/3:1 / 1:1
Related Voltage	220/230/240Vac {L-N} 380/400/415Vac
Voltage Range	132-275Vac(L-N) 228-478Vac
Rated Frequency	50 / 60 Hz
Frequency Range	40 ~ 70Hz
Power Factor	> 0.99
By-Pass Voltage Range	-Selectable, default -20%-+15% Up limited: +10%, +15%, +20%, +25%; Down limited: -10%, -15%, -20%, -30%, -40%
By-Pass Frequency Range	Selectable, ±1 Hz, ±3Hz, ±5Hz
Input Current TH Di	<3% (linear load)
By-pass Overload	125%: long term operation; 125%-130%: 1 Omin; 130%-150%: 1 min; 150%-400%: 1 s; >400%, less than 200ms
OUTPUT
Rated Voltage	220/230/240Vac (L-N) 380/400/415Vac (3Φ + N + PE)
Voltage Precision	±1 % ( linear load)
Frequency	Synchronized with utility in mains mode, 50/60 Hz± 0.1 Hz in battery mode
Waveform	Sinusoidal
Power Factor	1
Total Harmonic Distortion (THDv)	<1 % (full linear load}; <3% (full non-linear load according to IEC/EN62040-3)
Crest Factor	3:1
Overload	<110%, 60min; 110%-125%, 1 Omin; 125%-150%, 1min; >150%, 200ms
BATTERIES
DC Voltage	Long time model: ±240VDC ( selectable, 32 – 40pcs)
Standard Model Battery Voltage	I
Charging current	20AMax.
Charger voltage precision	1%
SYSTEM
Display	5 inch touch screen
Efficiency	96% Max.
Transfer time	0 ms
Max. number of parallel connections	4
Interface	Standard: RS232, RS485, USB, battery cold start Option: programmable dry contact, SNMP, parallel kit
ENVIRONMENT
Operating Temperature	0°~ 40°C
Storage Temperature	-40° ~ 70° C
Relative Humidity	0 ~ 95% (non-condensing)
Altitude	< 1000 m, load derated 1% per 100m from 1000 ~ 2000m
Noise Level at 1 m	62dB Max.
OTHERS
Dimensions (WxDxH) mm	250 x 790 x 560 (H)
Packaged Dimensions (W x D x H) mm	350 X 850 X 818 (H)
Net Weight (kg)	48(H)
Gross Weight (kg)	58 (H)
• S = standard model: H = long time model. • Derate capacity to 90% when the number of batteries is set to 32 pcs for 40kVA/60kVA model. • Custom-made specifications are acceptable. • All specifications are subject to change without notice. • Derate capacity to 60% when used at 3: 1.

UP3000-G5 (80kW)
UP3000-G5 (100kW)
UP3000-G5 (120kW)
UP3000-G5 (160kW)
UP3000-G5 (200kW)

TECHNICAL SPECIFICATIONS UP3000-G5 (80kW)
MODEL	UP3080-G5
Capacity / Power (kVA)	80kW
INPUT
Related Voltage	380 / 400 / 415 Vac (3Φ + N + PE)
Voltage Range	304-478Vac, full load 228V-304Vac, load decrease linearly according to the min phase voltage
Rated Frequency	50 / 60 Hz
Frequency Range	40 ~ 70Hz
Power Factor	> 0.99
By-Pass Voltage Range	-Selectable, default -20%-+15% Up limited: +10%, +15%, +20%, +25%; Down limited: -10%, -15%, -20%, -30%, -40%
By-Pass Frequency Range	Selectable, ±1 Hz, ±3Hz, ±5Hz
Input Current TH Di	<3% (linear load)
By-pass Overload	125%: long term operation; 125%-130%: 10 min; 130%-150%: 1 min; 150%-400%: 1s; >400%, less than 200ms
OUTPUT
Rated Voltage	380 / 400 / 415 Vac (3Φ + N + PE)
Voltage Precision	±1 % ( linear load)
Frequency	Synchronized with utility in mains mode, 50/60 Hz± 0.1 Hz in battery mode
Waveform	Sinusoidal
Power Factor	1
Total Harmonic Distortion (THDv)	<1 % (full linear load}; <3% (full non-linear load according to IEC/EN62040-3)
Crest Factor	3:1
Overload	<110%, 60min; 110%-125%, 10min; 125%-150%, 1min; >150%, 200ms
BATTERIES
DC Voltage	±240VDC(Selectable, 32-40pcs)
Charging current	30A
Charger voltage precision	1%
SYSTEM
Display	Default: 5 inch touch screen
Efficiency	95% Max.
Transfer time	0 ms
Interface	Standard: RS232, RS485, USB, battery cold start Option: programmable dry contact, SNMP, parallel kit
ENVIRONMENT
Operating Temperature	0°~ 40°C
Storage Temperature	-40° ~ 70° C
Relative Humidity	0 ~ 95% (non-condensing)
Altitude	< 1000 m, load derated 1% per 100m from 1000 ~ 2000m
Noise Level at 1 m	<70dB
OTHERS
Dimensions (WxDxH) mm	360 X 733 X 1185
Packaged Dimensions (W x D x H) mm	450 X 830 X 1351
Net Weight (kg)	141
Gross Weight (kg)	149
• S = standard model: H = long time model. • Derate capacity to 90% when the number of batteries is set to 32 pcs for 40kVA/60kVA model. • Custom-made specifications are acceptable. • All specifications are subject to change without notice. • Derate capacity to 60% when used at 3: 1.

TECHNICAL SPECIFICATIONS UP3000-G5 (100kW)
MODEL	UP30100-G5
Capacity / Power (kVA)	100kW
INPUT
Related Voltage	380 / 400 / 415 Vac (3Φ + N + PE)
Voltage Range	304-478Vac, full load 228V-304Vac, load decrease linearly according to the min phase voltage
Rated Frequency	50 / 60 Hz
Frequency Range	40 ~ 70Hz
Power Factor	> 0.99
By-Pass Voltage Range	-Selectable, default -20%-+15% Up limited: +10%, +15%, +20%, +25%; Down limited: -10%, -15%, -20%, -30%, -40%
By-Pass Frequency Range	Selectable, ±1 Hz, ±3Hz, ±5Hz
Input Current TH Di	<3% (linear load)
By-pass Overload	125%: long term operation; 125%-130%: 10 min; 130%-150%: 1 min; 150%-400%: 1s; >400%, less than 200ms
OUTPUT
Rated Voltage	380 / 400 / 415 Vac (3Φ + N + PE)
Voltage Precision	±1 % ( linear load)
Frequency	Synchronized with utility in mains mode, 50/60 Hz± 0.1 Hz in battery mode
Waveform	Sinusoidal
Power Factor	1
Total Harmonic Distortion (THDv)	<1 % (full linear load}; <3% (full non-linear load according to IEC/EN62040-3)
Crest Factor	3:1
Overload	<110%, 60min; 110%-125%, 10min; 125%-150%, 1min; >150%, 200ms
BATTERIES
DC Voltage	±240VDC(Selectable, 32-40pcs)
Charging current	40A
Charger voltage precision	1%
SYSTEM
Display	Default: 5 inch touch screen
Efficiency	95% Max.
Transfer time	0 ms
Interface	Standard: RS232, RS485, USB, battery cold start Option: programmable dry contact, SNMP, parallel kit
ENVIRONMENT
Operating Temperature	0°~ 40°C
Storage Temperature	-40° ~ 70° C
Relative Humidity	0 ~ 95% (non-condensing)
Altitude	< 1000 m, load derated 1% per 100m from 1000 ~ 2000m
Noise Level at 1 m	<70dB
OTHERS
Dimensions (WxDxH) mm	360 X 808 X 1185
Packaged Dimensions (W x D x H) mm	460 X 950 X 1343
Net Weight (kg)	160
Gross Weight (kg)	170
• S = standard model: H = long time model. • Derate capacity to 90% when the number of batteries is set to 32 pcs for 40kVA/60kVA model. • Custom-made specifications are acceptable. • All specifications are subject to change without notice. • Derate capacity to 60% when used at 3: 1.

TECHNICAL SPECIFICATIONS UP3000-G5 (120kW)
MODEL	UP30120-G5
Capacity / Power (kVA)	120kW
INPUT
Related Voltage	380 / 400 / 415 Vac (3Φ + N + PE)
Voltage Range	304-478Vac, full load 228V-304Vac, load decrease linearly according to the min phase voltage
Rated Frequency	50 / 60 Hz
Frequency Range	40 ~ 70Hz
Power Factor	> 0.99
By-Pass Voltage Range	-Selectable, default -20%-+15% Up limited: +10%, +15%, +20%, +25%; Down limited: -10%, -15%, -20%, -30%, -40%
By-Pass Frequency Range	Selectable, ±1 Hz, ±3Hz, ±5Hz
Input Current TH Di	<3% (linear load)
By-pass Overload	125%: long term operation; 125%-130%: 10 min; 130%-150%: 1 min; 150%-400%: 1s; >400%, less than 200ms
OUTPUT
Rated Voltage	380 / 400 / 415 Vac (3Φ + N + PE)
Voltage Precision	±1 % ( linear load)
Frequency	Synchronized with utility in mains mode, 50/60 Hz± 0.1 Hz in battery mode
Waveform	Sinusoidal
Power Factor	1
Total Harmonic Distortion (THDv)	<1 % (full linear load}; <3% (full non-linear load according to IEC/EN62040-3)
Crest Factor	3:1
Overload	<110%, 60min; 110%-125%, 10min; 125%-150%, 1min; >150%, 200ms
BATTERIES
DC Voltage	±240VDC(Selectable, 32-40pcs)
Charging current	40A
Charger voltage precision	1%
SYSTEM
Display	Default: 7 inch touch screen
Efficiency	95% Max.
Transfer time	0 ms
Interface	Standard: RS232, RS485, USB, battery cold start Option: programmable dry contact, SNMP, parallel kit
ENVIRONMENT
Operating Temperature	0°~ 40°C
Storage Temperature	-40° ~ 70° C
Relative Humidity	0 ~ 95% (non-condensing)
Altitude	< 1000 m, load derated 1% per 100m from 1000 ~ 2000m
Noise Level at 1 m	<70dB
OTHERS
Dimensions (WxDxH) mm	360 X 808 X 1185
Packaged Dimensions (W x D x H) mm	460 X 950 X 1343
Net Weight (kg)	160
Gross Weight (kg)	170
• S = standard model: H = long time model. • Derate capacity to 90% when the number of batteries is set to 32 pcs for 40kVA/60kVA model. • Custom-made specifications are acceptable. • All specifications are subject to change without notice. • Derate capacity to 60% when used at 3: 1.

TECHNICAL SPECIFICATIONS UP3000-G5 (160kW)
MODEL	UP30160-G5
Capacity / Power (kVA)	160kW
INPUT
Related Voltage	380 / 400 / 415 Vac (3Φ + N + PE)
Voltage Range	304-478Vac, full load 228V-304Vac, load decrease linearly according to the min phase voltage
Rated Frequency	50 / 60 Hz
Frequency Range	40 ~ 70Hz
Power Factor	> 0.99
By-Pass Voltage Range	-Selectable, default -20%-+15% Up limited: +10%, +15%, +20%, +25%; Down limited: -10%, -15%, -20%, -30%, -40%
By-Pass Frequency Range	Selectable, ±1 Hz, ±3Hz, ±5Hz
Input Current TH Di	<3% (linear load)
By-pass Overload	125%: long term operation; 125%-130%: 10 min; 130%-150%: 1 min; 150%-400%: 1s; >400%, less than 200ms
OUTPUT
Rated Voltage	380 / 400 / 415 Vac (3Φ + N + PE)
Voltage Precision	±1 % ( linear load)
Frequency	Synchronized with utility in mains mode, 50/60 Hz± 0.1 Hz in battery mode
Waveform	Sinusoidal
Power Factor	1
Total Harmonic Distortion (THDv)	<1 % (full linear load}; <3% (full non-linear load according to IEC/EN62040-3)
Crest Factor	3:1
Overload	<110%, 60min; 110%-125%, 10min; 125%-150%, 1min; >150%, 200ms
BATTERIES
DC Voltage	±240VDC(Selectable, 32-40pcs)
Charging current	60A
Charger voltage precision	1%
SYSTEM
Display	Default: 7 inch touch screen
Efficiency	95% Max.
Transfer time	0 ms
Interface	Standard: RS232, RS485, USB, battery cold start Option: programmable dry contact, SNMP, parallel kit
ENVIRONMENT
Operating Temperature	0°~ 40°C
Storage Temperature	-40° ~ 70° C
Relative Humidity	0 ~ 95% (non-condensing)
Altitude	< 1000 m, load derated 1% per 100m from 1000 ~ 2000m
Noise Level at 1 m	<70dB
OTHERS
Dimensions (WxDxH) mm	440 X 833 X 1250
Packaged Dimensions (W x D x H) mm	540 X 950 X 1408
Net Weight (kg)	230
Gross Weight (kg)	239
• S = standard model: H = long time model. • Derate capacity to 90% when the number of batteries is set to 32 pcs for 40kVA/60kVA model. • Custom-made specifications are acceptable. • All specifications are subject to change without notice. • Derate capacity to 60% when used at 3: 1.

TECHNICAL SPECIFICATIONS UP3000-G5 (200kW)
MODEL	UP30200-G5
Capacity / Power (kVA)	200kW
INPUT
Related Voltage	380 / 400 / 415 Vac (3Φ + N + PE)
Voltage Range	304-478Vac, full load 228V-304Vac, load decrease linearly according to the min phase voltage
Rated Frequency	50 / 60 Hz
Frequency Range	40 ~ 70Hz
Power Factor	> 0.99
By-Pass Voltage Range	-Selectable, default -20%-+15% Up limited: +10%, +15%, +20%, +25%; Down limited: -10%, -15%, -20%, -30%, -40%
By-Pass Frequency Range	Selectable, ±1 Hz, ±3Hz, ±5Hz
Input Current TH Di	<3% (linear load)
By-pass Overload	125%: long term operation; 125%-130%: 10 min; 130%-150%: 1 min; 150%-400%: 1s; >400%, less than 200ms
OUTPUT
Rated Voltage	380 / 400 / 415 Vac (3Φ + N + PE)
Voltage Precision	±1 % ( linear load)
Frequency	Synchronized with utility in mains mode, 50/60 Hz± 0.1 Hz in battery mode
Waveform	Sinusoidal
Power Factor	1
Total Harmonic Distortion (THDv)	<1 % (full linear load}; <3% (full non-linear load according to IEC/EN62040-3)
Crest Factor	3:1
Overload	<110%, 60min; 110%-125%, 10min; 125%-150%, 1min; >150%, 200ms
BATTERIES
DC Voltage	±240VDC(Selectable, 32-40pcs)
Charging current	60A
Charger voltage precision	1%
SYSTEM
Display	Default: 7 inch touch screen
Efficiency	95% Max.
Transfer time	0 ms
Interface	Standard: RS232, RS485, USB, battery cold start Option: programmable dry contact, SNMP, parallel kit
ENVIRONMENT
Operating Temperature	0°~ 40°C
Storage Temperature	-40° ~ 70° C
Relative Humidity	0 ~ 95% (non-condensing)
Altitude	< 1000 m, load derated 1% per 100m from 1000 ~ 2000m
Noise Level at 1 m	<70dB
OTHERS
Dimensions (WxDxH) mm	440 X 833 X 1250
Packaged Dimensions (W x D x H) mm	540 X 950 X 1408
Net Weight (kg)	230
Gross Weight (kg)	239
• S = standard model: H = long time model. • Derate capacity to 90% when the number of batteries is set to 32 pcs for 40kVA/60kVA model. • Custom-made specifications are acceptable. • All specifications are subject to change without notice. • Derate capacity to 60% when used at 3: 1.

UP3000-G5-Series

UP3000-G5 SERIES

10kVA - 200kVA 3-phase (3-3) UPS online double conversion

The re-engineered & more powerful 5th Generation UP3000 Series

Areas of Usage
